1. Introduction
The EuroClonality-NDC is a capture-based targeted next generation sequencing (NGS) assay with customised bioinformatics pipeline for research use only, designed and developed by the EuroClonality-NGS working group (an independent subdivision of EuroClonality).
The EuroClonality-NDC assay has undergone a large multi-centre validation, performed across seven European laboratories, in a wide range of samples from more than 15 categories of lymphoid malignancies and including high molecular weight (HMW) and FFPE gDNA1.
These results highlight the robustness of the assay as performed in academic or clinical laboratories with varying degree of experience with DNA capture hybridization protocols.
In addition, EuroClonality-NDC can now be used in conjunction with our highly streamlined data analysis app. Powered by one of the most secure platforms for genomic data analysis (Illumina’s BaseSpace Sequence HubTM) the analysis process is set up to support our customers with security and data protection compliance.
2. Scope
| ARID1A | CDKN2B | H1-2 | MAPK1 | RHOA | TNFAIP3 |
| ATM | CDKN2C | H1-3 | MYC | RUNX1 | TP53 |
| B2M | CKS1B | H1-4 | PAX5 | SAMHD1 | TRAF2 |
| BCL2 | EP300 | ID3 | PHF6 | SOCS1 | TRAF3 |
| BTG1 | ERG | KLF2 | POT1 | TCF3 | WT1 |
| BTK | FAT1 | KMT2D | PTEN | TENT5C | |
| CDKN2A | H1-5 | MAP3K14 | PTPRD | TET |
| Gene Name | Region Covered |
|---|---|
| ABL1 | Exons 4-9 |
| ASXL1 | Hotspot in last exon |
| BIRC3 | Exons 8 and 9 |
| BRAF | Exons 11 and 15 |
| CARD11 | Exons 2-16 |
| CCND1 | Exon 1 |
| CCND3 | Exon 5 |
| CD79A | Exons 4 & 5 |
| CD79B | Exons 4-6 |
| CREBBP | Exons 2-30 |
| CXCR4 | Hotspot in exon 2 |
| DIS3 | Exons 1-3 and 9-18 |
| DNMT3A | Exons 8-23 |
| EGR2 | Hotspot in exon 2 |
| EZH2 | Exons 15-17 |
| FBXW7 | Exons 1-12 |
| FOXO1 | Exon 1 |
| IDH1 | Exon 4 |
| IDH2 | Exons 4 and 7 |
| IKZF1 | Exons 2-7 |
| IL7R | Exon 6 |
| IRF4 | Exons 2-3 |
| JAK1 | Exons 12-15 |
| JAK2 | Exons 12-15 |
| JAK3 | Exons 11-24 |
| KIT | Exons 9, 11, 13, 17 and 18 |
| KRAS | Exons 2, 3 & 4 |
| MAP2K1 | Exons 1-8 |
| MEF2B | Exons 2-4 |
| MYD88 | Exon 3-5 |
| NFKBIE | Exon 1 |
| NOTCH1 | Exons 26, 27 & 34 |
| NOTCH2 | Exon 34 |
| NRAS | Exons 2-4 |
| NT5C2 | Exons 9-15 |
| PIK3CA | Exons 2, 5 10 & 21 |
| PLCG1 | Exons 1, 11, 15-17, 19 and 29 |
| PLCG2 | Exons 19, 20 & 24 |
| SF3B1 | Exons 12-17 |
| STAT3 | Exons 10-16 and 20-21 |
| STAT5B | Exons 13-19 |
| STAT6 | Exons 5, 9, 11, 12 and 14 |
| XPO1 | Exons 15-16 |
3. Output
The table below shows the approximate expected metrics of the EuroClonality-NDC assay based on 22 samples per hybridisation reaction (plus controls) and run on a NextSeq500/550 (Mid-Output 150 cycles cartridge) at 2 x 75bp. These can vary depending on DNA quality and quantity, technical factors in each laboratory, differences in equipment, etc.
| Parameter | Expected HMW-DNA | Expected FFPE-DNA |
|---|---|---|
| Library yield (ng) | 3,000 ng (range: 500-6,000) | 3,000 ng (range: 500-6,000) |
| Library average fragment size (bp) | 330 bp (range: 275 – 450 bp) | 290 bp (range: 245 – 330 bp) |
| Average on/near target bases (%) | 80% (range: 70 - 85%) | 80% (range: 70 - 85%) |
| Duplicate reads (%) | 40% (range: 30 – 50%) | 40% (range: 30 – 50%) |
| Mean unique target coverage (reads) | 1,000x (range: 500 – 1,500x) | 1,000x (range: 500 – 1,500x) |
This improved version of the EuroClonality-NDC assay and workflow underwent an analytical verification bridging study with gDNA extracted from 22 FFPE and 44 HMW samples which were included in the original validation study¹.
The following table represents the observed analytical performance:
| Analytical Sensitivity | Analytical Specificity | Limit of Detection | |
|---|---|---|---|
| IG/TR Rearrangements | >97% | >97% | 5% VAF |
| Translocation | >95% | >99% | 5% VAF |
| SNV | >99% | >99% | 4% VAF |
| CNV* | >95% | >97% | 40%** |
SNV: single nucleotide variant; CNV: copy number variation. *CNV have been validated in HMW-DNA for trisomy 12 and deletions of 11q, 13q and 17p. No performance data available for FFPE or other genomic regions. **Deletions can be detected if present in ≥ 40% of the cells. The threshold baseline fold-change for deletions detected by EuroClonality-NDC is 0.8 and 1.3 for losses and gains, and 0.7 and 2.0 for deletions and amplifications, respectively.
4. Performance
The validation and performance characterisation of the EuroClonality-NDC was carried out on 280 samples comprising a range of different B and T cell malignancies using a different version of library preparation and hybridisation methodologies.
The EuroClonality-NDC assay and analysis workflow have been updated since to improve performance and target coverage. Overall performance of the EuroClonality-NDC assay was assessed by identifying underperforming regions using DNA extracted from a panel of 91 normal tissue samples. Regions were classed as underperforming if coverage was >2 standard deviations (SD) below the mean in ≥50% samples. Only 10 underperforming coding regions have been identified that could affect mutation detection in the genes and exons shown in the table below.
| Gene Name | Chromosome | Exon |
|---|---|---|
| ARID1A | chr1 | 6 |
| CARD11 | chr7 | 12 |
| JAK2 | chr9 | 15 |
| TRAF2 | chr9 | 1 |
| PAX5 | chr9 | 10 |
| STAT5B | chr17 | 18 |
| TCF3 | chr19 | 7 |
| BTK | chrX | 18 |
| PHF6 | chrX | 6 |
| PHF6 | chrX | 3 |
5. Publications
Aenean eu leo quam. Pellentesque ornare sem lacinia quam venenatis vestibulum. Morbi leo risus, porta ac consectetur ac, vestibulum at eros.
The authors demonstrate that applying the EuroClonality-NDC assay to DNA samples from peripheral blood and bone marrow reliably detects diagnostically and prognostically important genetic factors in MCL patients, facilitating genetic characterization in clinical routine.
Describes the molecular relationship between BCP-ALL and BCP-LBL using whole exome sequencing / transcriptomics. EuroClonality-NDC was used for IG/TR rearrangement analysis.
Commentary/Editorial on the liquid biopsy manuscript below.
6. Resources
Below, you can find consectetur adipiscing elit. Donec sed odio dui. Vivamus sagittis lacus vel augue laoreet rutrum faucibus dolor auctor. Vivamus sagittis lacus vel augue laoreet rutrum faucibus dolor auctor.

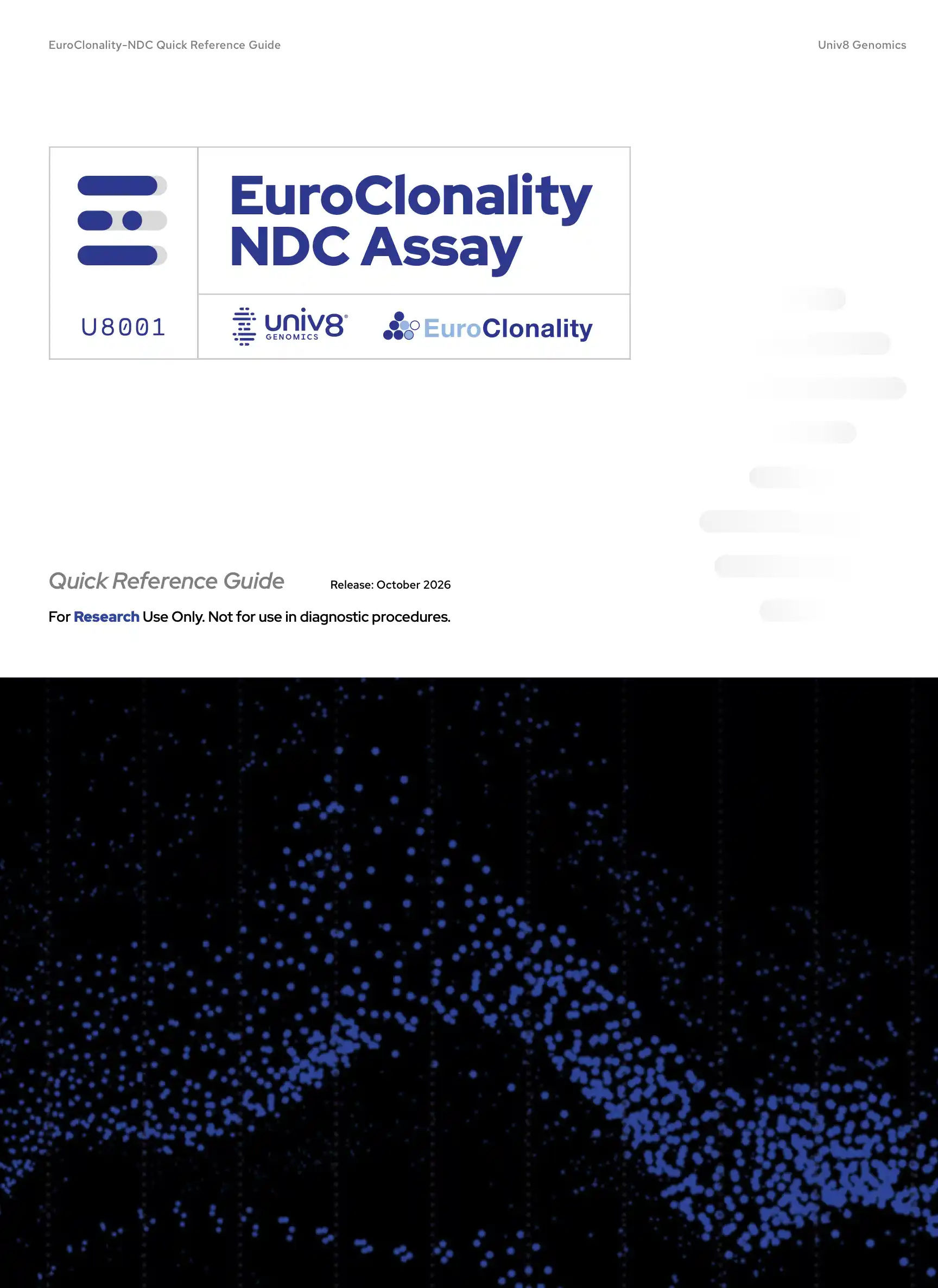

This quick reference document is intended to guide the users through the instructions of use for the EuroClonality-NDC assay and associated laboratory procedures.
This document is intended to guide the users through the analysis of the results generated by the EuroClonality-NDC assay and associated analysis tools.
Examples of EuroClonality-NDC output files from selected cell lines.
